How To Assemble LED Spotlights?

publisher: Iris
Time: 2019-07-12
Summary: 1.CNC Aluminum parts for spotlight, with spring buckles on both sides. 2.The terminal wire passes through the radiator, through the light source plate, and prepares the welding wire. .........
How To Assemble LED Spotlights?
The accessories of the spotlight are as below:

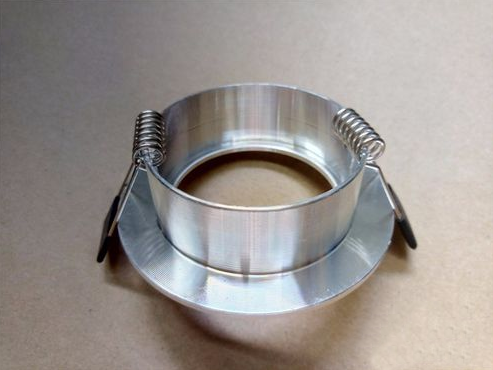

1.CNC aluminum parts for spotlight, with spring buckles on both sides.

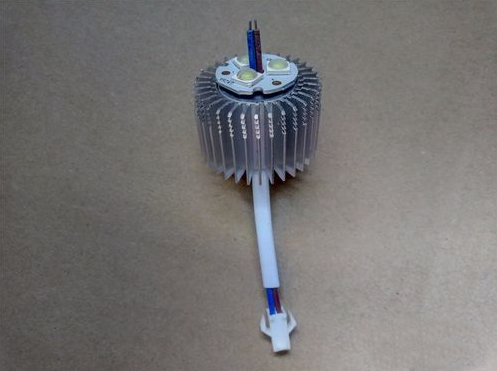

2.The terminal wire passes through the radiator, through the light source plate, and prepares the welding wire.


3.Welding wire, blue line negative "-" brown line positive "+"


4.Rub heat conductive silicone grease on the back of the light source plate. (Must have, heat dissipation)


5.Install the lens and screw it in the small aluminum parts.

6.Sleeve in the big aluminum parts, twist the screw, and twist one screw on one side, not very tight.

7.Spotlight has been installed,have you got it?


8.Connect the driver terminal interface.


9.Connect the wires. When connecting the wires, you must turn off the switch to avoid electric shock. In the picture, I took pictures on the workbench. The fast terminal is not for long-term use. It must be wrapped with insulating tape for long-term use. Turn on the switch after connecting the wire and light it up.

Please note:When wiring, you must turn off the switch to avoid electric shock.

Jiesheng (Jeasnn) hardware custom made CNC machining parts,CNC milling parts for LED lighting.
